Kerdom DX05 Review: The 400 lb All-Terrain Folding Power Chair (2026)

Folding power wheelchairs almost always make the same trade: to get light and packable, they give up capacity, motor power, and the ability to handle anything rougher than a smooth sidewalk. The Kerdom DX05 is built to break that pattern. It carries 400 pounds, runs 500 watts of combined motor, rolls on full 12-inch rear tires - and still folds down to go in a car. At $939.99, it is priced like a budget chair while speccing like a heavy-duty one.

That combination raises an obvious question: what did Kerdom give up to hit those numbers at that price? Because something usually has to give. This Kerdom DX05 review digs into the real answer across capacity, terrain, comfort, and portability, so you know exactly who this chair is built for - and who should look at a lighter model in the range instead.

If you have read our complete guide to lightweight foldable electric wheelchairs, the DX05 is the model that sits deliberately outside the “ultra-light” conversation. It is the muscle of the lineup.

What the Kerdom DX05 Is Built For

Most of Kerdom’s range chases portability above all else. The DX08 shaves the frame down to 25.8 pounds of carbon fiber; the DX04 hits a budget price in a compact aluminum body. The DX05 goes the other direction on purpose. It is the heavy-duty, all-terrain chair, designed for larger riders, rougher ground, and people who need a power chair that does not feel like it is working at its limit.

The headline that defines it is the 400-pound weight capacity - 50 to 100 pounds more than the lighter folding models. Pair that with a wider 20-inch seat, a thicker 3-inch cushion, and a 500-watt dual-motor drivetrain, and you have a chair built for substance rather than packability. At $939.99, down from a $2,659.99 list, it undercuts almost every heavy-duty folding competitor on the market.

Kerdom DX05: Full Specifications

Specification	Kerdom DX05
Weight (without battery)	58 lbs
Weight (with battery)	62 lbs
Battery	24V 12Ah / 250Wh lithium-ion (removable)
Range	20 miles per charge
Max Speed	3.73 mph
Weight Capacity	400 lbs
Motors	250W × 2 brushless (500W total)
Seat Width	20 inches
Cushion	3-inch padded
Folded Dimensions	29″L × 14″W × 24″H
Turning Radius	24 inches
Max Incline	12°
Tires	8″ front / 12″ rear
Floor-to-Seat Height	20 inches
Charging Time	4–8 hours
Warranty	5 years (frame)

Three numbers carry this chair. The 400-pound capacity is the highest in Kerdom’s folding line. The 500 watts of motor is roughly double the lighter models, which is what lets it pull a heavier rider up an incline without bogging down. And the 20-mile range from a 250Wh pack is genuinely strong for a chair this powerful.

Design, Frame, and the All-Terrain Difference

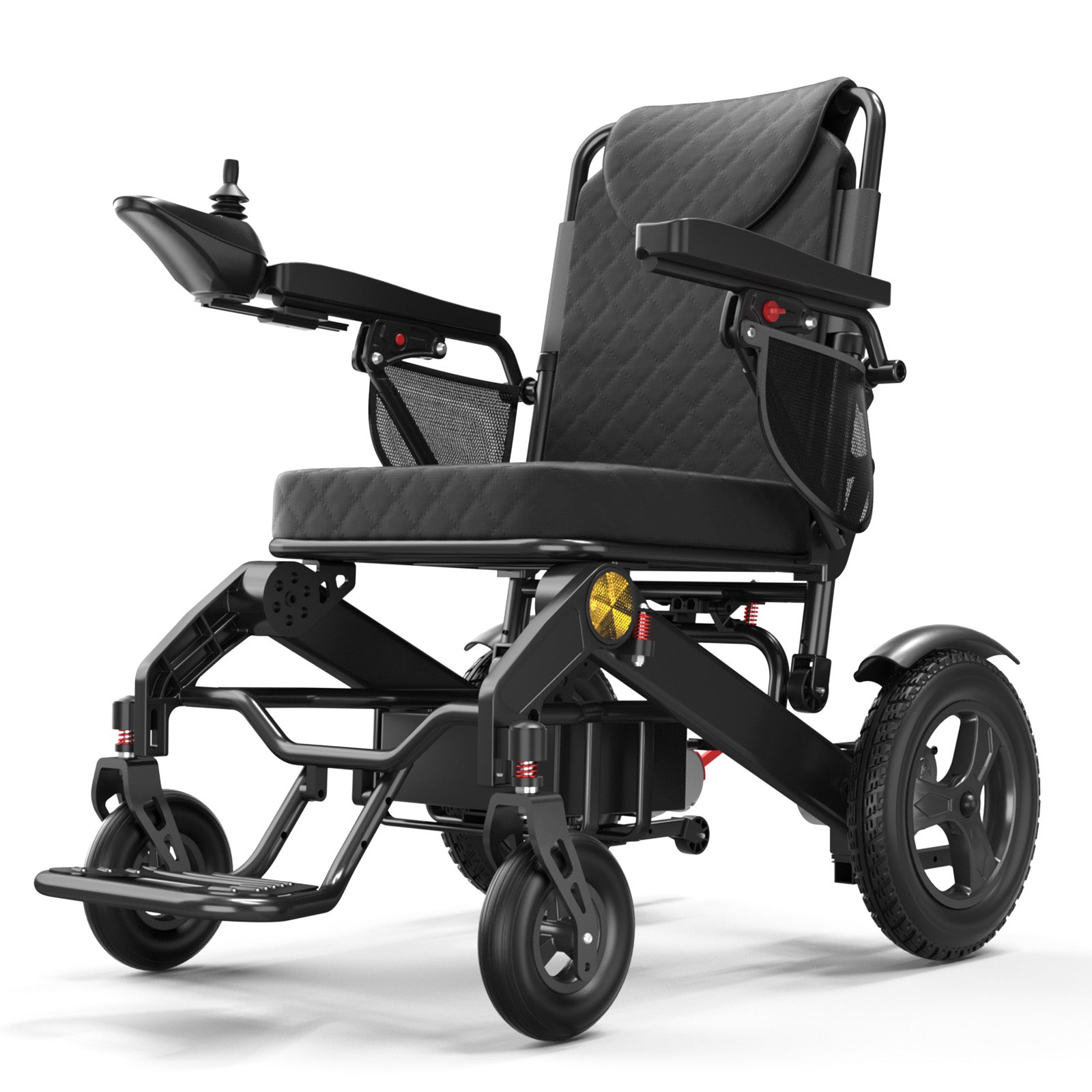

Kerdom DX05 all-terrain folding power wheelchair side view — The DX05’s 12-inch rear tires and heavier frame deliver genuine all-terrain stability.

The DX05 looks and feels like a different class of chair the moment you see it next to a featherweight folder. The frame is heavier-gauge steel and aluminum rather than carbon, which is the honest reason it weighs 58 pounds and carries 400. You do not get a 400-pound rating and a 26-pound frame in the same chair - physics does not allow it, and the DX05 spends its weight where it counts.

The defining feature is the tire setup. Where ultra-light chairs use small solid casters that transmit every crack in the pavement, the DX05 runs 12-inch rear tires and 8-inch fronts with a more aggressive tread. That larger diameter is what “all-terrain” actually means here: bigger wheels roll over obstacles, gravel, grass, and uneven ground that would stop a small-wheeled chair cold. Combined with the longer wheelbase, the ride is noticeably more planted and stable.

The seat is the other upgrade. At 20 inches wide with a 3-inch cushion, it is the roomiest and most comfortable seat in the folding range - a real difference for larger riders or anyone who sits in the chair for most of the day. Flip-up armrests and a 20-inch seat height keep transfers manageable.

Performance: Power, Range, and Real Terrain

Kerdom DX05 heavy-duty electric wheelchair on rough outdoor ground — Dual 250W motors (500W total) pull heavier riders over grass and gravel without bogging down.

This is where the DX05 earns its name. The dual 250W motors deliver 500 watts combined - roughly double the DX04’s 360W and the DX08’s 300W. That extra torque is not about top speed (it is capped at a sensible 3.73 mph like the rest of the line); it is about not struggling. A 350-pound rider on a grass lawn or a gravel path is exactly the scenario where lighter chairs bog down and the DX05 simply keeps pulling.

The 12-degree incline rating is standard for the category and covers ramps, curb cuts, and mild slopes; the difference is that the DX05 climbs them under heavier load without the motor straining. The 20-mile range from the 250Wh battery is realistic for genuine 14–17 miles of mixed real-world use, which comfortably covers a full active day outdoors - a market the lighter chairs, built for indoor and pavement use, do not serve as well.

The tradeoff is the same one every solid-tire chair makes: the tires are puncture-proof, so you never get a flat, but they are firmer than air tires over the very roughest surfaces. The larger diameter offsets most of that, and for the terrain this chair targets, the stability matters more than the last few percent of cushioning.

Portability: The Heavy-Duty Tradeoff

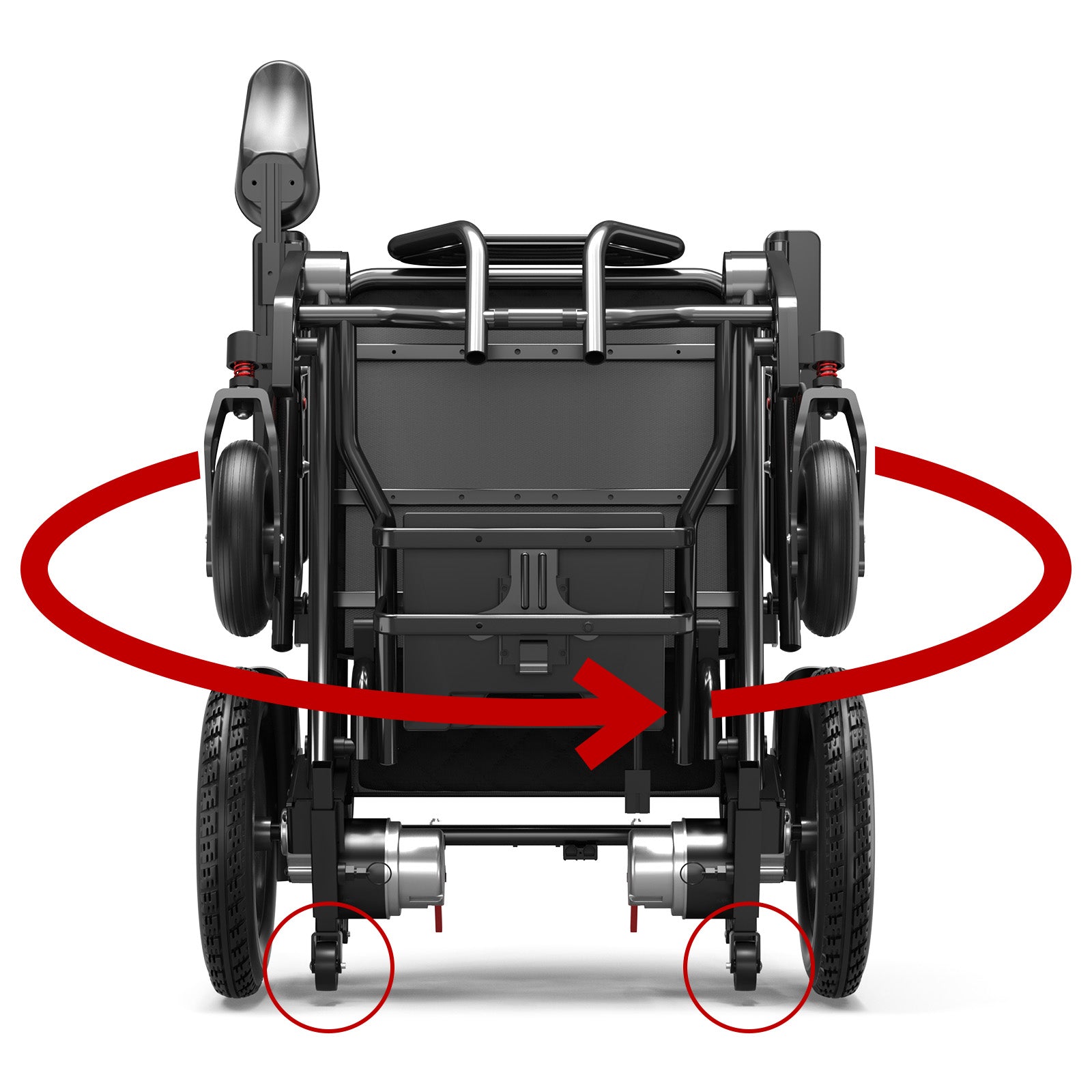

Kerdom DX05 folded for transport — The DX05 folds, but at 58 lbs it is a vehicle-transport chair rather than a solo one-person lift.

Here is the honest limitation. The DX05 folds - the frame collapses to 29 × 14 × 24 inches, and the battery detaches - but at 58 pounds for the frame, this is not a one-person-lifts-it-into-the-trunk chair the way the DX08 is. Most owners will fold it to transport it in an SUV or van, or use a ramp, rather than lifting it solo into a sedan.

That is not a flaw; it is the deal. You cannot have a 400-pound capacity, a 500-watt drivetrain, and a 20-inch cushioned seat and a 26-pound carry weight. The DX05 is for people whose priority is capacity, stability, and outdoor capability, and who have a vehicle or helper that makes the heavier fold a non-issue. If solo, effortless lifting is your top requirement, the DX08 is the chair you actually want, and our head-to-head comparison lays the tradeoff out clearly.

Kerdom DX05 Pros and Cons

What works:

400-lb capacity - the highest in Kerdom’s folding range
500W dual motors pull heavier riders over grass, gravel, and inclines without bogging
12-inch rear tires deliver genuine all-terrain stability
20-inch seat with a 3-inch cushion - the most comfortable seat in the line
20-mile range supports full active days outdoors
$939.99 undercuts heavy-duty folding competitors, with a 5-year frame warranty

Where it compromises:

58–62 lbs - folds, but not a solo one-person lift into a sedan
Solid tires ride firm over the very roughest ground
3.73 mph top speed is modest (shared across the line)
Heavier and bulkier than the ultra-light models by design

Who the Kerdom DX05 Is For

The DX05 is the right chair if capacity, stability, and outdoor capability rank above packability. It suits larger riders who need a true 400-pound rating, anyone who spends real time on grass, gravel, or uneven ground, and users who want the roomiest, best-cushioned seat in the folding range. With a vehicle that can take the folded frame, it delivers heavy-duty performance at a price that reads like a budget chair.

Look elsewhere in the range if portability is your priority: the DX08 for the lightest possible carry, the DX07 for a balanced all-rounder, or the DX04 for the lowest price. If you are still mapping models to your needs, the complete buying guide and the Kerdom wheelchair comparison do exactly that.

Final Verdict: Is the Kerdom DX05 Worth It?

At $939.99, the Kerdom DX05 does something genuinely uncommon: it brings a 400-pound capacity, a 500-watt drivetrain, real all-terrain tires, and a cushioned 20-inch seat into a chair that still folds - at a price most heavy-duty competitors cannot touch. The 5-year frame warranty and 60-day returns make it a low-risk way into a category that is usually expensive.

The compromise is weight, and it is an honest one. This is not the chair you lift into a sedan one-handed, and it was never meant to be. But for the rider who needs capacity and stability over the rough stuff, the DX05 is the strongest value in Kerdom’s lineup, and one of the best heavy-duty folding power chairs you can buy near $1,000.
